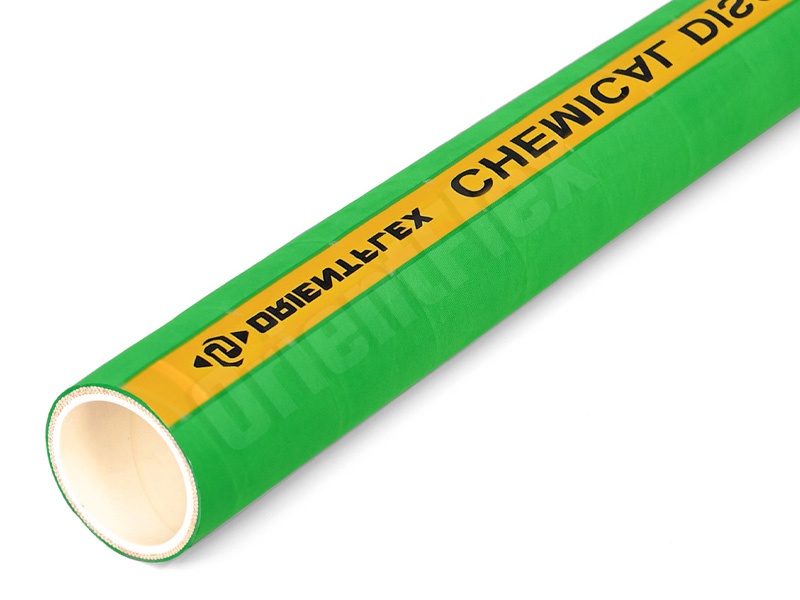

Chemical Suction Hose
Chemical Suction Hose
Chemical suction hose is a acid resistant hose which is to deliver chemicals like acid, alkali and solvent. It widely serves in chemical industry, oil exploiation and power plant. Besides, it is also ideal for wasted water treatment. Orientflex offers you the special chemical hose because there is an UHMWPE lining inside the inner tube. While such lining offers much better corrosion resistance. Therefore, Orientflex hose performs well in dealing with chemicals.
Acid Resistant Hose
Tube: White, smooth EPDM, lined with ultra high molecular weight polyethylene (UHMWPE)
Reinforcement: Multiple plies of high strength synthetic fabrics and helix wires
Cover: EPDM, resistant to chemical, weather and ozone
Color: Blue or green; wrapped or corrugated
Temperature: -40℃ to + 120℃ (-72℉ to +248℉)
Application: acid hose is designed for suction and discharge of chemicals and solvents for in-plant and tank truck use.
Chemical Suction Hose is a high pressure, high temperature suction and discharge hose designed to handle many commonly used acids, chemicals and solvents.
Chemical resistant hose is made from EPDM and lined with smooth ultra high molecular weight polyethylene (UHMWPE). It makes the industrial chemical hoses can work in a high temperature up to 120℃. The hose conforms to FDA, USDA and meets the 3-A requirements. What’s more, chemical transfer hose will not leach into and contaminate the medium.
The dual wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground and is suitable for use with internally expanded couplings. The cover is resistant to abrasion, mild chemicals and ozone.
UHMWPE Chemical Suction Hose Features
Handle 98% of the chemicals and acids
Heat, weather, abrasion resistant EPDM cover
Corrugated cover makes hose more flexible
Heavy duty construction with 250 PSI working pressure
Chemical Hose 150 PSI
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31.6 | 10 | 150 | 30 | 450 | 40 |
| 1" | 25.4 | 37 | 10 | 150 | 30 | 450 | 40 |
| 1-1/4" | 31.8 | 45 | 10 | 150 | 30 | 450 | 40 |
| 1-1/2" | 38.1 | 51 | 10 | 150 | 30 | 450 | 40 |
| 2" | 50.8 | 64 | 10 | 150 | 30 | 450 | 40 |
| 2-1/2" | 63.5 | 79 | 10 | 150 | 30 | 450 | 40 |
| 3" | 76.2 | 91 | 10 | 150 | 30 | 450 | 40 |
| 4" | 101.6 | 119 | 10 | 150 | 30 | 450 | 40 |
| 6" | 152 | 171 | 10 | 150 | 30 | 450 | 20 |
Chemical Hose 250 PSI
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31 | 16 | 250 | 48 | 720 | 40 |
| 1" | 25.4 | 38 | 16 | 250 | 48 | 720 | 40 |
| 1-1/4" | 31.8 | 45 | 16 | 250 | 48 | 720 | 40 |
| 1-1/2" | 38.1 | 52 | 16 | 250 | 48 | 720 | 40 |
| 2" | 50.8 | 65 | 16 | 250 | 48 | 720 | 40 |
| 2-1/2" | 63.5 | 79 | 16 | 250 | 48 | 720 | 40 |
| 3" | 76.2 | 93 | 16 | 250 | 48 | 720 | 40 |
| 4" | 101.6 | 122 | 16 | 250 | 48 | 720 | 40 |
| 6" | 152 | 175 | 16 | 250 | 48 | 720 | 20 |
Chemical Hose 300 PSI
| ID | OD | WP | BP | L | |||
| inch | mm | mm | bar | psi | bar | psi | m |
| 3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 40 |
| 1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 40 |
| 1-1/4" | 31.8 | 47 | 20 | 300 | 60 | 900 | 40 |
| 1-1/2" | 38.1 | 54 | 20 | 300 | 60 | 900 | 40 |
| 2" | 50.8 | 67.8 | 20 | 300 | 60 | 900 | 40 |
| 2-1/2" | 63.5 | 84 | 20 | 300 | 60 | 900 | 40 |
| 3" | 76.2 | 96 | 20 | 300 | 60 | 900 | 40 |
| 4" | 101.6 | 123 | 20 | 300 | 60 | 900 | 40 |
| 6" | 152 | 175 | 20 | 300 | 60 | 900 | 20 |
