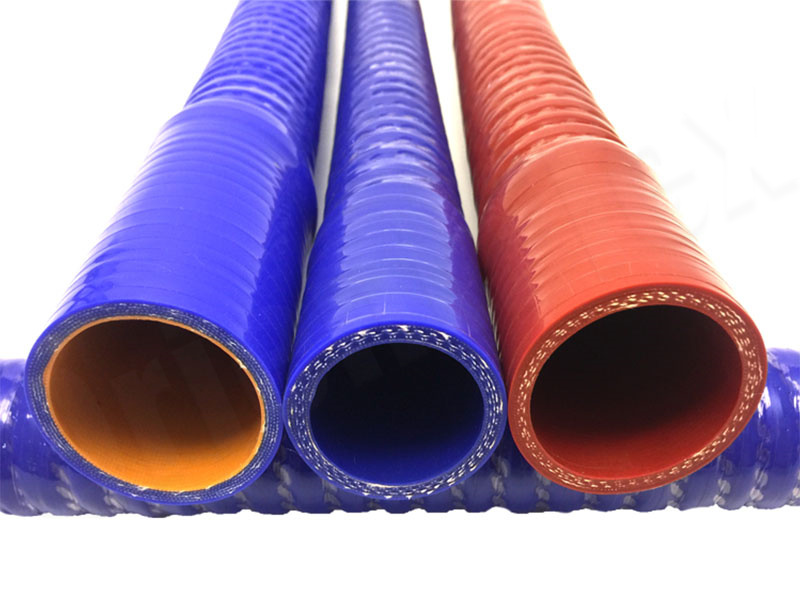

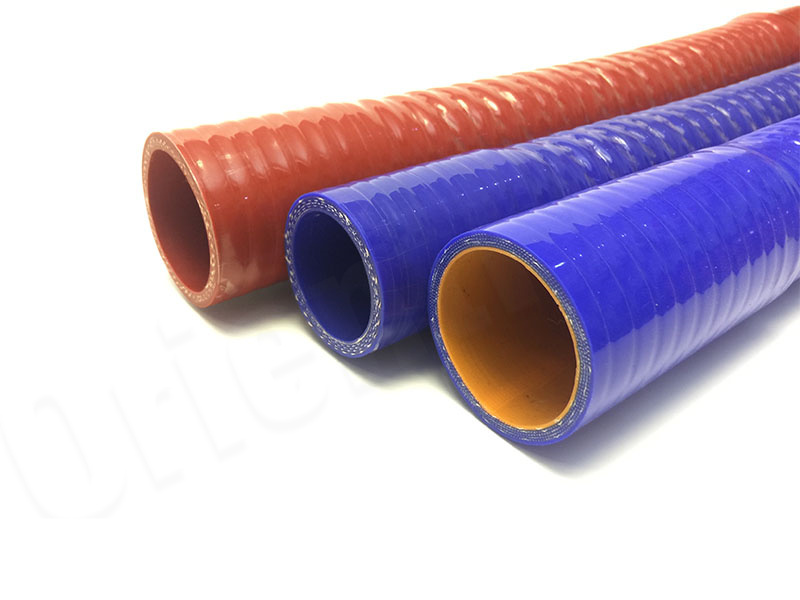

Corrugated Silicone Hose
Corrugated Silicone Hose
Corurgated silicone hose has great temperature resistance. It can work at max 220℃ and it remains flexible at -40℃. Thus it widely serves in hydraulic system, oil exploiation and vehicles.
Corrugated Silicone Hose
Tube: 100% High quality silicone
Reinforce: Four ply polyester/aramid fabrics with helix wire
Cover: Silicone
Color: Black, red, blue, green, yellow
Temperature: -40℃ to +220℃ (-40℉ to +428℉)
Application: Mainly used in mine hydraulic support, oil exploration, suitable to engineer construction, crane transport, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machine tools.
Corrugated Silicone Hose meets the requirements of SAEJ20 specification. The hose is flexible with high retractility. The corrugation allows the hose to bend for easy installation. We offer high quality silicone hoses with exceptional performance.
The wire reinforced corrugated hose will not collapse under suction or in a bend. The wire is spring steel and the diameter is from 1.2mm to 2.2mm. Silicone corrugated hose is resistant to exhaust fumes, ozone, mild chemicals, freeze and salt water.
The silicone corrugated hose is used as air clean hose and ideal for main engine exhaust, generator exhaust, engine cooling circulation, engine intake and generator intake.
Corrugated Silicone Hose Features:
100% Virgin silicone materials
High pressure and superior impulse resistant
Oil, heat and aging resistant
Superior bonding internal; soft use and small deformation under pressure
Kink and fatigue resistant
Longer service life
Working Pressure: 0.3-1.2MPA
Corrugated Silicone Hose Specification
| ID | Layer | Thickness | Length | ID | Layer | Thickness | Length | ||
| inch | mm | ply | mm | mm | inch | mm | ply | mm | mm |
| 5/8" | 16 | 4 | 4-4.5 | 200~1000 | 1-8/9" | 48 | 4 | 4.5-5 | 200~1000 |
| 3/4" | 19 | 4 | 4-4.5 | 200~1000 | 2" | 51 | 4 | 4.5-5 | 200~1000 |
| 7/9" | 20 | 4 | 4-4.5 | 200~1000 | 2-1/8" | 54 | 4 | 4.5-5 | 200~1000 |
| 6/7" | 22 | 4 | 4-4.5 | 200~1000 | 2-1/4" | 57 | 4 | 4.5-5 | 200~1000 |
| 1" | 25 | 4 | 4.5-5 | 200~1000 | 2-1/3" | 60 | 4 | 4.5-5 | 200~1000 |
| 1-1/9" | 28 | 4 | 4.5-5 | 200~1000 | 2-1/2" | 63 | 4 | 4.5-5 | 200~1000 |
| 1-1/6" | 30 | 4 | 4.5-5 | 200~1000 | 2-3/4" | 70 | 4 | 4.5-5 | 200~1000 |
| 1-1/4" | 32 | 4 | 4.5-5 | 200~1000 | 3" | 76 | 4 | 4.5-5 | 200~1000 |
| 1-3/8" | 35 | 4 | 4.5-5 | 200~1000 | 3-1/4" | 83 | 4 | 4.5-5 | 200~1000 |
| 1-1/2" | 38 | 4 | 4.5-5 | 200~1000 | 3-1/2" | 89 | 4 | 4.5-5 | 200~1000 |
| 1-3/5" | 41 | 4 | 4.5-5 | 200~1000 | 3-3/4" | 95 | 4 | 4.5-5 | 200~1000 |
| 1 7/9" | 45 | 4 | 4.5-5 | 200~1000 | 4" | 102 | 4 | 4.5-5 | 200~1000 |
