PU Duct Hose
PU Duct Hose
PU ducting adopts high quality PU as raw material which has excellent abrasion resistant. With the support of steel wire, it has a strong structure for material handling. It’s ideal for the suction and delivery work for abrasive materials like sand, grit and many others. Orientflex can insert copper wire inside the polyurethane duting to conduct the static during the material handling work.
PU Duct Hose
Materials: Abrasion and flame resistant PU
Reinforcement: Copper coated spring steel wire
Temperature: -40℃ to +90℃ (short time to 125℃)
Application: Woodworking/furniture industries, abrasion resistance, agriculture, chemical fumes, room clean, cold air supply, dust collection, fume exhaust, landfill venting, lawn & leaf collection

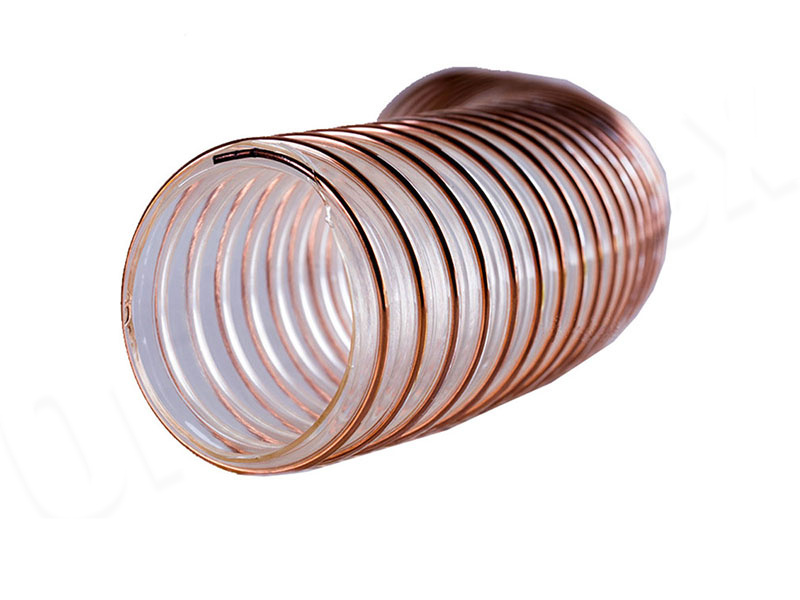

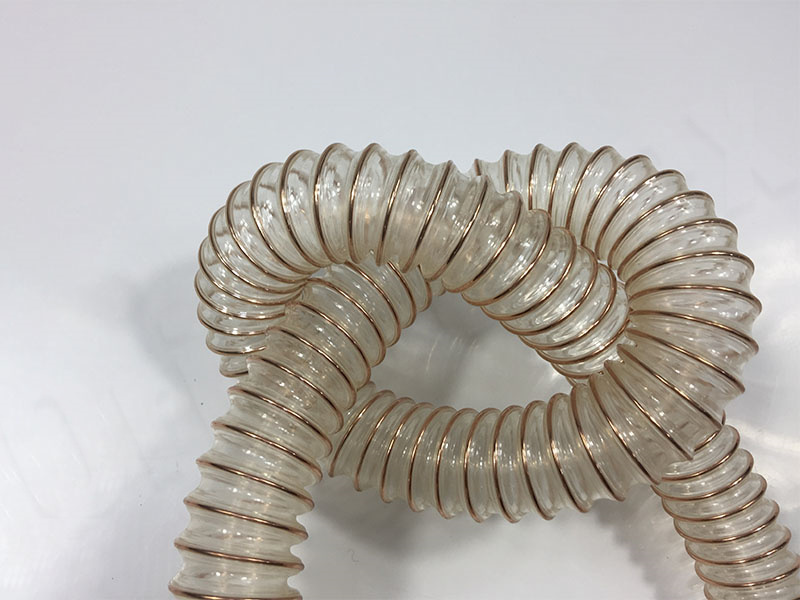

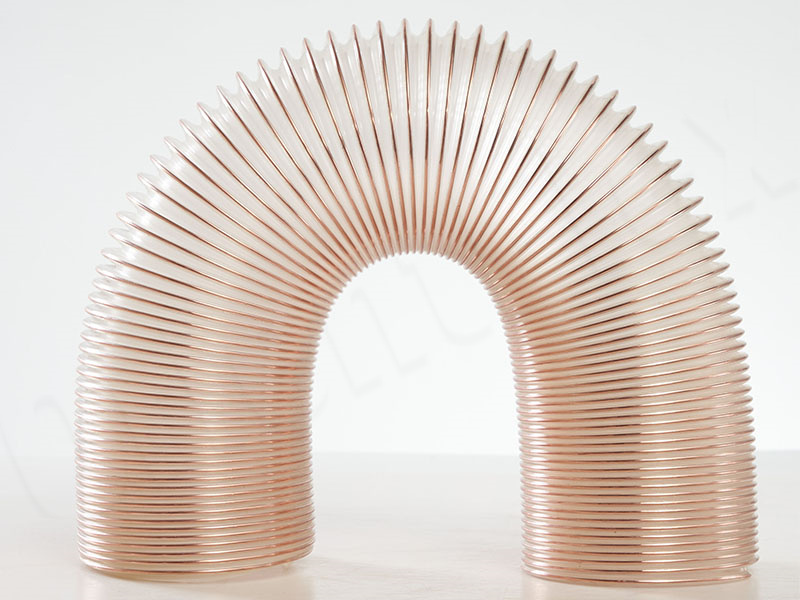

PU Flexible Ducting Hose is a flexible and lightweight hose made for air, dust and light material movement, fume control, and dust collection.
Its polyurethane wall and spring steel wire helix reinforcement offer the Ducting Polyurethane excellent compressible, abrasion and chemical resistance. Thin wall makes the hose have excellent compression rate to 4:1
Polyurethane ducting hose has excellent sliding and impact abrasion, fuels, oils, grease and solvents resistance.
Transaprent tube makes you can clearly see if there is clog in the hose. The working pressure of PU Ducting Hoses is from -40℃ to +125℃.
PU Duct Hose Features
Great abrasion resistant
Great compressibility
High tensile, burst strength and tearing resistant
Conduct static by grounding the steel wire
Super chemical resistant
Extremely flexible and compressible
Efficient flow characteristics
Different wall thicknesses are available
PU Duct Hose Specification
| ID | Thickness | BR | WP | Vacuum Pressure | L | |||
| mm | light | medium | mm | light | medium | light | medium | m |
| 25 | 0.4 | 0.6 | 38 | 0.75 | 1.6 | 0.45 | 0.45 | 10 |
| 32 | 0.4 | 0.6 | 47 | 0.7 | 1.6 | 0.4 | 0.4 | 10 |
| 38 | 0.4 | 0.6 | 54 | 0.7 | 1.6 | 0.35 | 0.4 | 10 |
| 40 | 0.4 | 0.6 | 56 | 0.65 | 1.5 | 0.35 | 0.35 | 10 |
| 51 | 0.4 | 0.6 | 69 | 0.5 | 1.4 | 0.3 | 0.3 | 10 |
| 60 | 0.4 | 0.6 | 81 | 0.5 | 1.2 | 0.25 | 0.25 | 10 |
| 63 | 0.4 | 0.6 | 85 | 0.5 | 1.2 | 0.25 | 0.25 | 10 |
| 70 | 0.4 | 0.6 | 94 | 0.45 | 1.1 | 0.22 | 0.23 | 10 |
| 76 | 0.4 | 0.6 | 102 | 0.4 | 1 | 0.2 | 0.23 | 10 |
| 80 | 0.4 | 0.6 | 107 | 0.4 | 0.9 | 0.15 | 0.2 | 10 |
| 82 | 0.4 | 0.6 | 107 | 0.4 | 0.9 | 0.15 | 0.2 | 10 |
| 90 | 0.4 | 0.6 | 119 | 0.35 | 0.8 | 0.14 | 0.18 | 10 |
| 102 | 0.4 | 0.6 | 166 | 0.3 | 0.75 | 0.14 | 0.15 | 10 |
| 115 | 0.4 | 0.6 | 186 | 0.28 | 0.65 | 0.13 | 0.15 | 10 |
| 120 | 0.4 | 0.6 | 193 | 0.25 | 0.55 | 0.12 | 0.15 | 10 |
| 127 | 0.4 | 0.6 | 204 | 0.25 | 0.5 | 0.1 | 0.13 | 10 |
| 140 | 0.4 | 0.6 | 223 | 0.2 | 0.4 | 0.09 | 0.13 | 10 |
| 152 | 0.4 | 0.6 | 241 | 0.15 | 0.3 | 0.08 | 0.12 | 10 |
| 159 | 0.4 | 0.6 | 252 | 0.15 | 0.25 | 0.08 | 0.12 | 10 |
| 178 | 0.4 | 0.6 | 280 | 0.12 | 0.23 | 0.06 | 0.1 | 10 |
| 203 | 0.4 | 0.6 | 318 | 0.1 | 0.22 | 0.06 | 0.09 | 10 |
| 254 | 0.4 | 0.6 | 394 | 0.06 | 0.2 | 0.04 | 0.08 | 10 |
| 305 | 0.4 | 0.6 | 471 | 0.04 | 0.15 | 0.03 | 0.06 | 10 |
