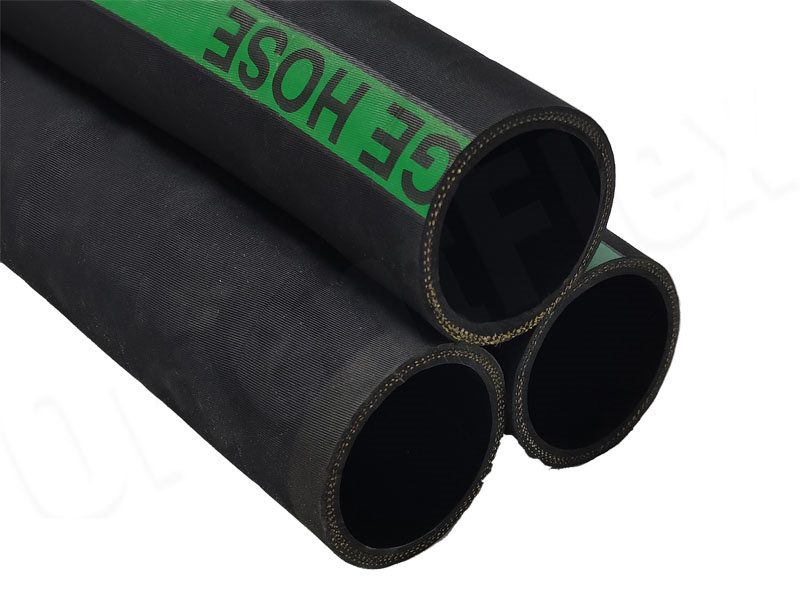

Rubber Discharge Hose
Rubber Discharge Hose
Orientflex rubber discharge hose is ideal for general industrial water transfer and discharge work. With strict production standard, our rubber water hose is ideal for various applications.
Rubber Discharge Hose Structure
Tube: Black, smooth, NR, SBR
Reinforcement: Multiply of high strength synthetic fibre
Cover: Black, smooth, cloth impression, SBR
Temperature: -40℃ to +70℃ (-40℉ to +158℉)
Application: Designed for water and non-corrosive fluids used in constructions, mines and light duty industries
Rubber Discharge Hose are used in more rigourous applications which can be subject to abuse, pressures or elements.
It should be noted that all water hoses are not typically designed for critical applications or permanent piping systems. Water discharge hose is used for the toughest industrial or construction. The cover is designed to withstand weather, abrasion and ozone.
It should be noted that all water hoses are not typically designed for critical applications or permanent piping systems. Water discharge hose is used for the toughest industrial or construction. The cover is designed to withstand weather, abrasion and ozone.
Rubber Water Hose Features
- Weather and ozone resistant
- Flexible and high working pressure
- Suitable for tough working conditions
Water Hose 150 PSI Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/16" | 4.8 | 12 | 10 | 150 | 30 | 450 | 100 | 330 |
| 1/4" | 6.4 | 13 | 10 | 150 | 30 | 450 | 100 | 330 |
| 5/16" | 7.9 | 15 | 10 | 150 | 30 | 450 | 100 | 330 |
| 3/8" | 9.5 | 16 | 10 | 150 | 30 | 450 | 100 | 330 |
| 1/2" | 12.7 | 22 | 10 | 150 | 30 | 450 | 100 | 330 |
| 5/8" | 15.9 | 26 | 10 | 150 | 30 | 450 | 100 | 330 |
| 3/4" | 19.1 | 29 | 10 | 150 | 30 | 450 | 100 | 330 |
| 7/8" | 22.2 | 32 | 10 | 150 | 30 | 450 | 100 | 330 |
| 1" | 25.4 | 35 | 10 | 150 | 30 | 450 | 100 | 330 |
| 1-1/4" | 31.8 | 42 | 10 | 150 | 30 | 450 | 60 | 200 |
| 1-1/2" | 38.1 | 48 | 10 | 150 | 30 | 450 | 60 | 200 |
| 2" | 50.8 | 62 | 10 | 150 | 30 | 450 | 60 | 200 |
| 2-1/2" | 63.5 | 76 | 10 | 150 | 30 | 450 | 60 | 200 |
| 3" | 76.2 | 89 | 10 | 150 | 30 | 450 | 60 | 200 |
| 3-1/2" | 88.9 | 103 | 10 | 150 | 30 | 450 | 60 | 200 |
| 4" | 101.6 | 116 | 10 | 150 | 30 | 450 | 60 | 200 |
| 5" | 127 | 142 | 10 | 150 | 30 | 450 | 30 | 100 |
| 6" | 152.4 | 167 | 10 | 150 | 30 | 450 | 30 | 100 |
| 8" | 203.2 | 219 | 10 | 150 | 30 | 450 | 30 | 100 |
| 10" | 254 | 274 | 10 | 150 | 30 | 450 | 12 | 40 |
| 12" | 304.8 | 322 | 10 | 150 | 30 | 450 | 12 | 40 |
Water Hose 300 PSI Specification
| ID | OD | WP | BP | L | ||||
| inch | mm | mm | bar | psi | bar | psi | m | ft |
| 3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 330 |
| 5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
| 3/8" | 9.5 | 16 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 330 |
| 5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 | 330 |
| 3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 330 |
| 1-1/4" | 31.8 | 44 | 17 | 250 | 51 | 750 | 60 | 200 |
| 1-1/2" | 38.1 | 51 | 17 | 250 | 51 | 750 | 60 | 200 |
| 2" | 50.8 | 65 | 17 | 250 | 51 | 750 | 60 | 200 |
| 2-1/2" | 63.5 | 78 | 17 | 250 | 51 | 750 | 60 | 200 |
| 3" | 76.2 | 91 | 17 | 250 | 51 | 750 | 60 | 200 |
| 3-1/2" | 88.9 | 108 | 17 | 250 | 51 | 750 | 60 | 200 |
| 4" | 101.6 | 120 | 17 | 250 | 51 | 750 | 60 | 200 |
| 5" | 127 | 148 | 17 | 250 | 51 | 750 | 30 | 100 |
| 6" | 152.4 | 173 | 17 | 250 | 51 | 750 | 30 | 100 |
| 8" | 203.2 | 228 | 17 | 250 | 51 | 750 | 30 | 100 |
| 10" | 254 | 280 | 17 | 250 | 51 | 750 | 12 | 40 |
| 12" | 304.8 | 330 | 17 | 250 | 51 | 750 | 12 | 40 |
