Silicone Braided Hose
Silicone Braided Hose
Silicone Braided hose is made from top grade silicone raw material. While such silicone hose can be industrial grade, food grade and medical grade. Thus it widely serves in food industry and medical applications. Besides, it widely serves in baby products like nipple. Because it is quite safe for human.
Tube: 100% High quality silicone or 100% FDA silicone or Medical grade silicone
Reinforcement: Polyester/Aramid Braid
Cover: Silicone
Color: Any color is available
Temperature: -40℃ to +220℃ (-40℉ to +428℉)
Application: Superior temperature resistance makes them ideal for cooling/heating, charged-air, food grade and medical grade applications.
Common Grade Silicone Braided Hose
Common Grade Silicone Braided Hose is made from premium grade silicone and commonly use for vacuum advance systems, turbo systems, coolant systems, emission control and temperature range applications. It can handle extreme pressure with heavy wall. It’s ultra flexible with excellent tensile strength.
Material: 100% High quality silicone
Features:
100% silicone raw material
Odourless and nontoxic
Aging and temperature resistant, operate temperature: -40℃ to +220℃
Various colors and sizes are available
Food Grade Silicone Braided Hose
Food Grade Silicone Reinforced Hose is designed for a variety of pump and transfer applications including laboratory, bioprocess manufacturing, food and beverage. The braided silicone tubing is able to withstand a high temperature up to 220℃ (intermittently) and available in various internal diameters and wall thickness. High temp silicone hose used as food tube and food machinery connecting pipe for liquor connecting conduit, water dispenser, coffee maker and water heater.
Material: 100% FDA silicone, FDA, LFGB certificated
Features:
100% Food grade silicone raw material
Pass biocompatibility cell toxicity test, including cell toxicity test, sensitization test, intracutaneous reactivity test, hemolysis test and acute systemic toxicity test.
Aging and temperature resistant, working temperature: -40℃ to +220℃
Various colors and sizes are available
Medical Grade Silicone Braided Hose Pipe
Medical Grade Braided Reinforced Silicone Hose is used as medical tubing, as it meets the medical industry’s requirements for cleanliness and is nontoxic. Resistant to extreme temperature make it can be used as flexible tube to handle temperatures, which is impossible for plastic and rubber hoses.
Material: Medical grade silicone
Features:
100% medical grade silicone raw material
Odourless and nontoxic
Aging and temperature resistant, operate temperature: -40℃ to +220℃
Various colors and sizes are available
Silicone Braided Hose Specification
| ID | Length | Length | ID | Length | Length | ||
| inch | mm | mm | mm | inch | mm | mm | mm |
| 1/4" | 6 | Customized | 50, 100, etc | 1-1/2" | 38 | Customized | 50, 100, etc |
| 5/16" | 8 | 2" | 51 | ||||
| 3/8" | 10 | 2-1/4" | 57 | ||||
| 1/2" | 13 | 2-1/2" | 63 | ||||
| 5/8" | 16 | 2-3/4" | 70 | ||||
| 3/4" | 19 | 3" | 76 | ||||
| 1" | 25 | 3-1/2" | 89 | ||||
| 1-1/4" | 32 | 4" | 102 |
You May Also Like

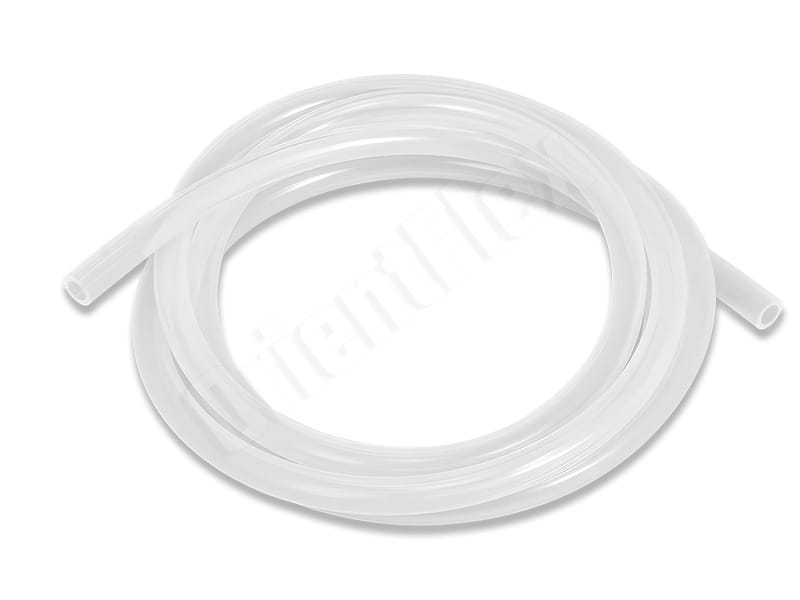

Silicone Vacuum Hose
