TPU Layflat Hose
TPU Layflat Hose

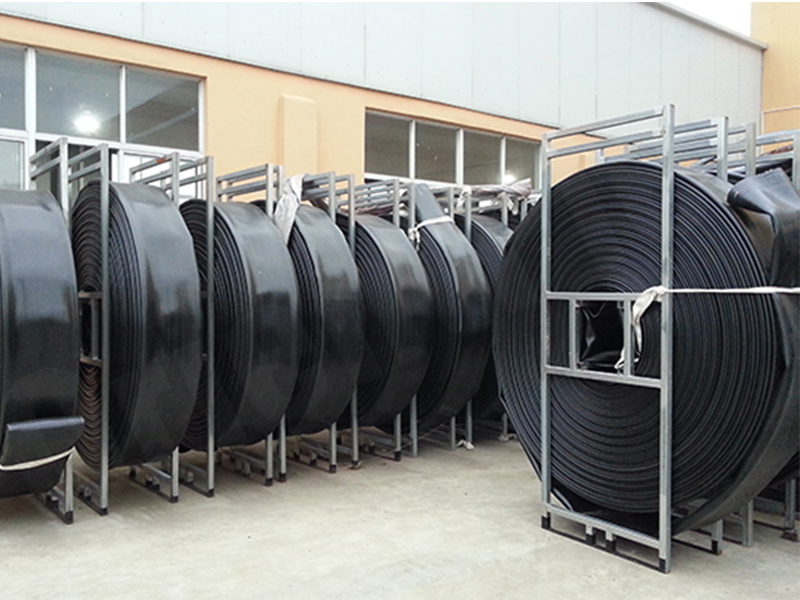

TPU Layflat Hose is made from extruded thermoplastic polyester based polyurethane (TPU) with excellent wear & tear properties. It’s reinforced with circular woven filament polyester yarn.
TPU Layflat Hose
Tube & Cover: TPU
Reinforcement: Woven polyester jacket
Temperature: -55℃ to +80℃ (-67℉ to +176℉)
Application: Fire fighting, shipping, petroleum, chemical industry, agriculture and mining.
The “extrusion through-the-weave” production method offers a very strong bonding between cover and lining and firmly encapsulating the woven polyester. Its has excellent wear, gouging, and tear resistance.
It is also resistant to many chemicals and its superior construction makes it light in weight and permits it to be made in very long length even in larger diameters. The interlocked reinforcement weaves ensure the extension in hose length is minimized when the hose is pulled or pressurized – which also keeps “snaking” of the hose to a minimum.
TPU Hose Features:
Acid, alkali and corrosion resistant
Abrasion and oil resistant
Cold and small flow resistant
TPU Layflat Hose Advantages:
Standard color black, other colors on request
Individual marking available
Binding with international couplings available on request
Other diameters on request
Standard lengths 100m and 200m
TPU Layflat Hose Specification
| ID | Thickness | WP | BP | Weight | Measurement | L | |||
| inch | mm | mm | Mpa | psi | Mpa | psi | kg/m | m³ | m |
| 2 | 51 | 2.6 | 1 | 145 | 3 | 435 | 0.55 | 0.282 | 200 |
| 2 | 51 | 3 | 1.6 | 232 | 4.8 | 696 | 0.65 | 0.287 | 200 |
| 2.1/2 | 65 | 2.6 | 1 | 145 | 3 | 435 | 0.65 | 0.399 | 200 |
| 2.1/2 | 65 | 3 | 1.6 | 232 | 4.8 | 696 | 0.75 | 0.402 | 200 |
| 3 | 76 | 2.8 | 1 | 145 | 3 | 435 | 0.6 | 0.462 | 200 |
| 3 | 76 | 3.5 | 1.6 | 232 | 4.8 | 696 | 1.2 | 0.471 | 200 |
| 3.1/6 | 80 | 2.8 | 1.6 | 232 | 4.8 | 696 | 1 | 0.486 | 200 |
| 3.1/6 | 80 | 2.8 | 2.8 | 406 | 8.4 | 1218 | 1.3 | 0.486 | 200 |
| 4 | 102 | 3.2 | 1 | 145 | 3 | 435 | 1.2 | 0.69 | 200 |
| 4 | 102 | 3.5 | 1.2 | 145 | 3.6 | 435 | 1.4 | 0.693 | 200 |
| 4 | 102 | 4.4 | 1.6 | 232 | 4.8 | 696 | 1.45 | 0.713 | 200 |
| 4 | 102 | 4.6 | 2 | 290 | 6 | 870 | 1.5 | 0.794 | 200 |
| 4 | 102 | 4.8 | 2.8 | 406 | 8.4 | 1218 | 1.8 | 0.88 | 200 |
| 5 | 125 | 3.5 | 1 | 145 | 3 | 435 | 1.21 | 0.842 | 200 |
| 5 | 125 | 3.7 | 1.6 | 232 | 4.8 | 696 | 1.31 | 0.939 | 200 |
| 6 | 152 | 3.9 | 1 | 145 | 3 | 435 | 1.8 | 1.137 | 200 |
| 6 | 152 | 4 | 1.4 | 203 | 4.2 | 609 | 2.03 | 1.137 | 200 |
| 6 | 152 | 4.5 | 1.6 | 232 | 4.8 | 696 | 2.25 | 1.141 | 200 |
| 6 | 152 | 4.7 | 2 | 290 | 6 | 870 | 2.44 | 1.144 | 200 |
| 6 | 152 | 5.5 | 2.5 | 362 | 7.5 | 1086 | 3.48 | 1.411 | 200 |
| 6 | 152 | 6 | 2.8 | 406 | 8.4 | 1218 | 3.48 | 1.42 | 200 |
| 8 | 200 | 3.6 | 0.8 | 116 | 2.4 | 348 | 3 | 1.444 | 200 |
| 8 | 200 | 3.6 | 1 | 145 | 3 | 435 | 3 | 1.444 | 200 |
| 8 | 200 | 3.8 | 1.2 | 174 | 3.6 | 522 | 3.2 | 1.48 | 200 |
| 8 | 200 | 3.8 | 1.4 | 203 | 4.2 | 609 | 3.2 | 1.469 | 200 |
| 8 | 200 | 4.5 | 1.6 | 232 | 4.8 | 696 | 3.2 | 1.48 | 200 |
| 8 | 200 | 4.5 | 2 | 290 | 6 | 870 | 4.2 | 1.48 | 200 |
| 10 | 250 | 4.6 | 1 | 145 | 3 | 435 | 4.1 | 2.032 | 200 |
| 10 | 250 | 4.6 | 1.2 | 174 | 3.6 | 522 | 4.1 | 2032 | 200 |
| 10 | 250 | 4.7 | 1.4 | 203 | 4.2 | 609 | 4.3 | 2.036 | 200 |
| 10 | 250 | 5.5 | 1.6 | 232 | 4.8 | 696 | 6 | 2.478 | 200 |
| 12 | 300 | 4.5 | 0.8 | 116 | 2.4 | 348 | 5 | 2.424 | 200 |
| 12 | 300 | 4.5 | 1 | 145 | 3 | 435 | 5 | 2.424 | 200 |
| 12 | 300 | 5.5 | 1.2 | 174 | 3.6 | 522 | 6.2 | 2.952 | 200 |
| 12 | 300 | 5.8 | 1.4 | 203 | 4.2 | 609 | 6.4 | 2.957 | 200 |
| 14 | 350 | 5 | 0.8 | 116 | 2.4 | 348 | 5 | 3.422 | 200 |
| 14 | 350 | 5.3 | 1 | 145 | 3 | 435 | 6.2 | 3.436 | 200 |
| 16 | 400 | 5.5 | 0.8 | 116 | 2.4 | 348 | 7 | 3.906 | 200 |
| 16 | 400 | 5.8 | 1 | 145 | 2.4 | 348 | 8.5 | 3.92 | 200 |
